Overview

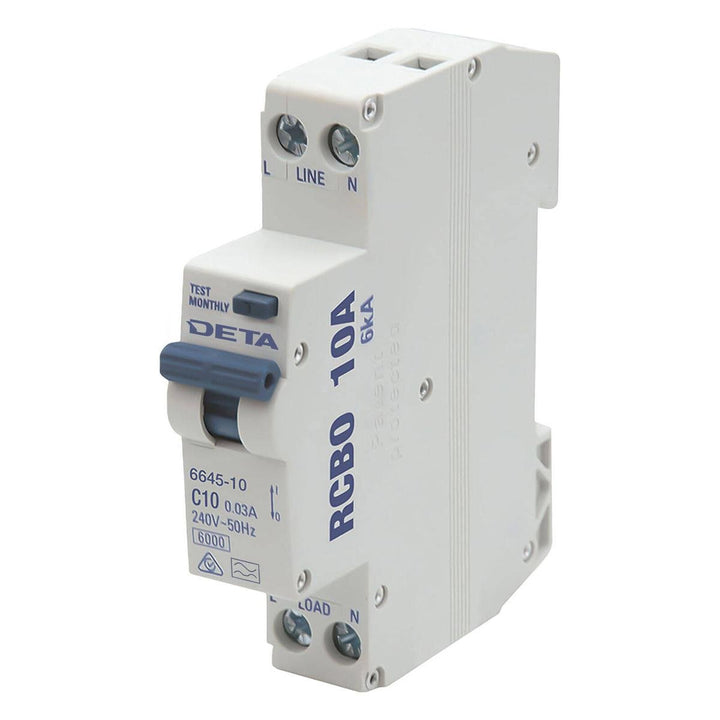

Deta 10a Residual Circuit Breaker with Overload Protection is designed for residential and commercial use, providing essential protection against earth faults, overloads, and short circuits.
The DETA 10A Residual Circuit Breaker with Overload Protection (RCBO) is engineered to safeguard lighting circuits by detecting earth fault and leakage currents, as well as overloads and short circuits. With a short circuit capacity rating of 6kA, it is compliant with AS/NZS 61009 standards and is suitable for single-phase 1P+N installations. The device is 18mm wide, allowing for easy mounting on a 35mm DIN rail in both flush and surface-mounted switchboards or enclosures, making it a versatile choice for various applications.
Features
- Short circuit capacity rating of 6kA for residential and commercial installations
- C-type, 30mA type A residual tripping current
- Protection against earth fault, leakage current, overload, and short circuit
- Easy mounting onto 35mm DIN rail
- Compliant with AS/NZS 61009 and ESV listed
Specifications
| Dimensions (W x H x D) | 18mm x 82mm x 75mm |
| Weight | 0.3kg |
| Material | Nylon PA66 |
| Model Number | 6645-10B |
| Maximum Voltage | 240 volts |
| Maximum Amperage | 10 amps |
The Deta 10a Residual Circuit Breaker with Overload Protection ensures reliable electrical safety in various installations.
