Overview

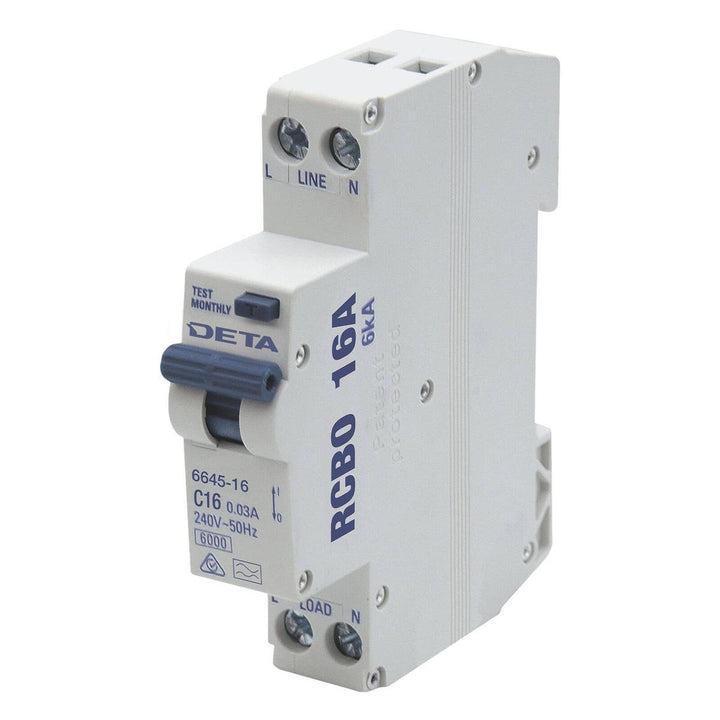

Deta 16a Residual Circuit Breaker with Overload Protection is designed to safeguard electrical circuits from earth faults, overloads, and short circuits in residential and commercial settings.
The DETA 16A Residual Circuit Breaker with Overload Protection (RCBO) is engineered to provide reliable protection against earth fault/leakage current, overload, and short circuit conditions. With a short circuit capacity rating of 6kA, it is suitable for both residential and commercial installations. This device features a C-type, 30mA type A residual tripping current and is designed for easy mounting onto a 35mm DIN rail. The compact design, measuring 18mm in width, allows for installation in flush or surface-mounted switchboards or enclosures, ensuring compliance with AS/NZS 61009 standards and ESV listing.
Features
- Short circuit capacity rating of 6kA for residential and commercial use
- C-type, 30mA type A residual tripping current
- Protection against earth fault/leakage current, overload, and short circuit
- Easy mounting onto 35mm DIN rail
- Single phase 1P+N, compliant with AS/NZS 61009
Specifications
| Dimensions (W x H x D) | 18mm x 82mm x 75mm |
| Weight | 0.3kg |
| Material | Nylon PA66 |
| Model Number | 6645-16B |
| Maximum Voltage | 240 volts |
| Maximum Amperage | 16 amps |
The Deta 16a Residual Circuit Breaker with Overload Protection is essential for ensuring electrical safety in various applications.
