Overview

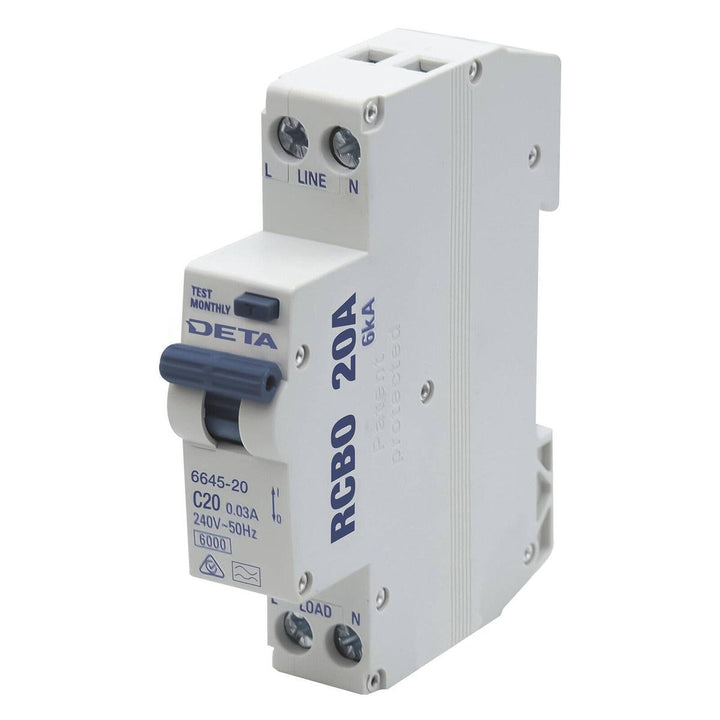

Deta 20a Residual Circuit Breaker with Overload Protection is designed to safeguard electrical circuits from earth faults, overloads, and short circuits in residential and commercial settings.
The Deta 20A Residual Circuit Breaker with Overload Protection (RCBO) is engineered to provide reliable protection against earth fault/leakage currents, overloads, and short circuits. With a short circuit capacity rating of 6kA, it is suitable for both residential and commercial installations. This device features a C-type, 30mA type A residual tripping current and is designed for easy mounting onto a 35mm DIN rail. It operates on a single-phase 1P+N configuration and complies with AS/NZS 61009 standards, making it an ideal choice for hot water and power circuits. The compact design, measuring 18mm in width, allows for installation in flush or surface-mounted switchboards or enclosures.
Features
- Short circuit capacity rating of 6kA for residential and commercial use
- C-type, 30mA type A residual tripping current
- Protection against earth fault/leakage current, overload, and short circuit
- Easy mounting onto 35mm DIN rail
- Single phase 1P+N, compliant with AS/NZS 61009 and ESV listed
Specifications
| Dimensions (W x H x D) | 18mm x 82mm x 75mm |
| Weight | 0.3kg |
| Material | Nylon PA66 |
| Model Number | 6645-20B |
| Maximum Voltage | 240 volts |
| Maximum Amperage | 20 amps |
Deta 20a Residual Circuit Breaker with Overload Protection ensures safety in electrical installations.
