Overview

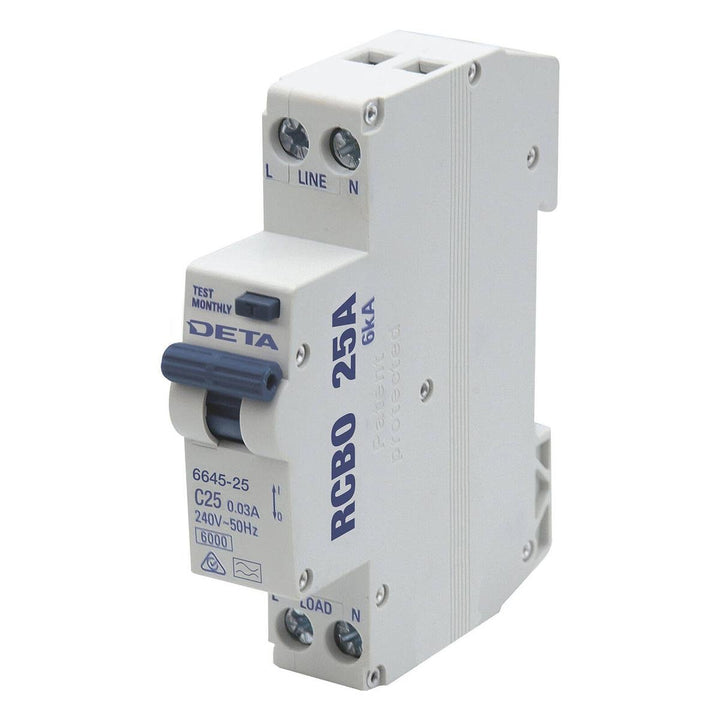

Deta 25a Residual Circuit Breaker with Overload Protection is designed for residential and commercial applications, providing essential protection against electrical faults.
The DETA 25A Residual Circuit Breaker with Overload Protection (RCBO) is engineered to safeguard against earth fault/leakage current, overload, and short circuits. With a short circuit capacity rating of 6kA, it is suitable for both hot water and power circuits. This device features a C-type, 30mA residual tripping current and is designed for easy mounting onto a 35mm DIN rail. It complies with AS/NZS 61009 standards and is ESV listed, making it a reliable choice for flush or surface-mounted switchboards and enclosures.
Features
- Short circuit capacity rating of 6kA for residential and commercial installations
- C-type, 30mA type A residual tripping current
- Protection against earth fault/leakage current, overload, and short circuit
- Easy mounting onto 35mm DIN rail
- Single phase 1P+N, compliant with AS/NZS 61009 and ESV listed
Specifications
| Dimensions (W x H x D) | 18mm x 82mm x 75mm |
| Weight | 0.3kg |
| Material | Nylon PA66 |
| Model Number | 6645-25B |
| Maximum Voltage | 240 volts |
| Maximum Amperage | 25 amps |
The Deta 25a Residual Circuit Breaker with Overload Protection is a reliable solution for electrical safety.
Specifications
Specifications will vary by product. Please refer to the product description above or contact us before ordering if you need a specific measurement.
