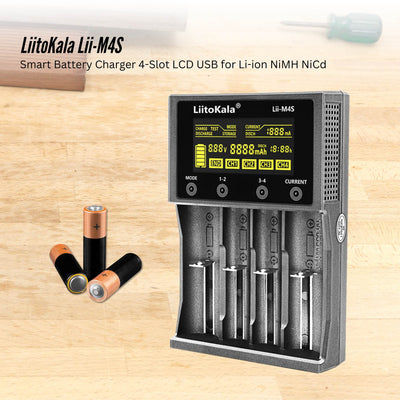

The LiitoKala Lii-M4S is a versatile and intelligent battery charger designed to accommodate a wide range of rechargeable batteries. With its advanced touch control interface and clear LCD display, users can easily navigate through various charging modes and monitor battery status in real time. The charger supports multiple battery chemistries and sizes, making it an ideal choice for both everyday users and enthusiasts.

Features:

• Touch Control Interface: Navigate through modes and settings with intuitive touch-sensitive buttons.

• Multiple Charging Modes: Choose from CHARGE, DISCHARGE, TEST, and STORAGE modes to suit your battery maintenance needs.

• LCD Display: Monitor voltage, current, capacity, and time for each battery slot in real time.

• Independent Channels: Each of the four slots operates independently, allowing for simultaneous charging of different battery types and sizes.

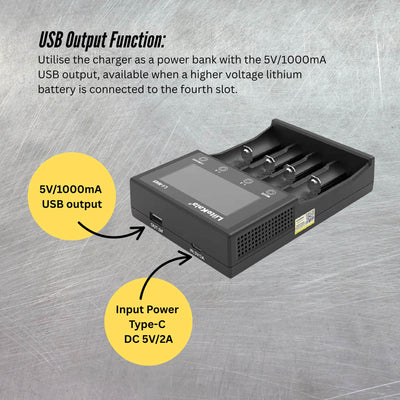

• USB Output Function: Utilise the charger as a power bank with the 5V/1000mA USB output, available when a higher voltage lithium battery is connected to the fourth slot.

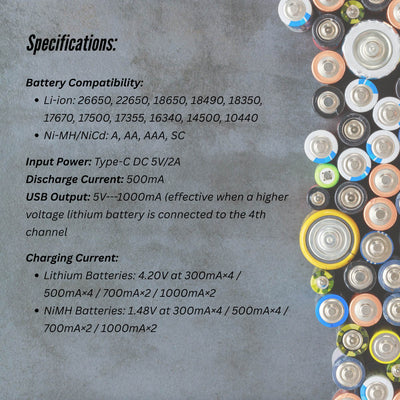

Specifications:

• Model: LiitoKala Lii-M4S

• Input Power: Type-C DC 5V/2A

• USB Output: 5V---1000mA (effective when a higher voltage lithium battery is connected to the 4th channel)

• Charging Current:

  • Lithium Batteries: 4.20V at 300mA×4 / 500mA×4 / 700mA×2 / 1000mA×2

  • NiMH Batteries: 1.48V at 300mA×4 / 500mA×4 / 700mA×2 / 1000mA×2

• Discharge Current: 500 mA

• Compatible Battery Types:

  • Li-ion: 26650, 22650, 18650, 18490, 18350, 17670, 17500, 17355, 16340, 14500, 10440

  • Ni-MH/NiCd: A, AA, AAA, SC

• Protection Features:

  • Overcharge and over-discharge protection

  • Short circuit protection

  • 0V activation function

  • Reverse battery detection

  • Intelligent identification of faulty batteries

• LCD Display Parameters:

  • Operating Mode (MODE)

  • Voltage (V)

  • Current (mA)

  • Time (h)

  • Capacity (mAh)

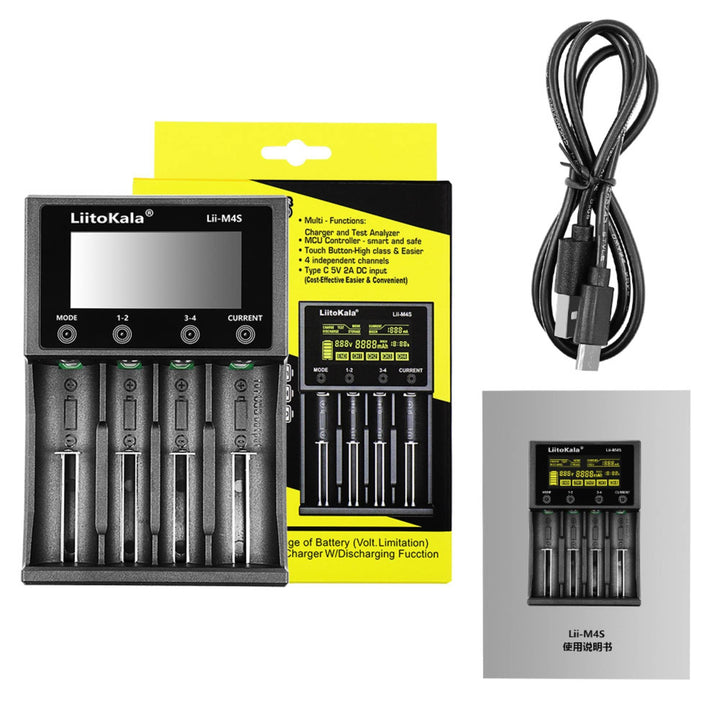

Package Includes:

• 1 × LiitoKala Lii-M4S Charger
• 1 × Type-C Charging Cable
• 1 × User Manual
