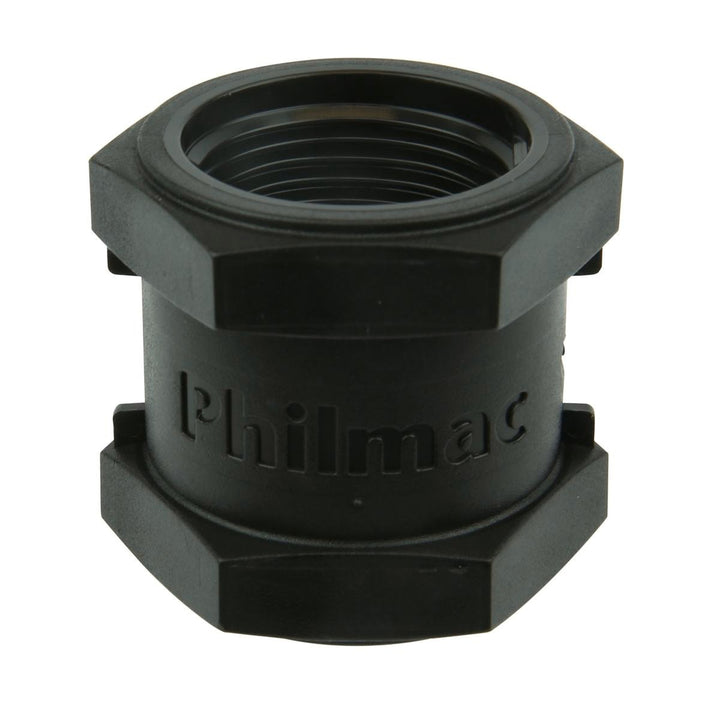

Philmac 1 Inch BSP Thread Pipe Socket - Polypropylene - High Performance is a robust threaded fitting designed for high-performance connections in various applications.
The Philmac 1 Inch BSP Thread Pipe Socket is an Australian-made fitting that is Watermark and potable water (AS/NZ 4020) approved. Manufactured in accordance with ISO9001 quality standards, this fitting features precision BSP tapered threads engineered to maximise sealing performance. Its hexagonal body design allows for easy installation, making it versatile for a wide range of pressure ratings and chemical combinations. Suitable for working pressures up to PN16 (1600 kPa, 235 psi) for sizes up to 2”, PN12 (1200 kPa, 175 psi) for 2 ½”, and PN10 (1000 kPa, 145 psi) for 3” to 4” fittings, the comprehensive range includes plugs, bushes, nipples, sockets, tees, elbows, tank outlets, MF elbows, and caps.
Features
- Australian made and Watermark approved for potable water.
- Manufactured to ISO9001 quality endorsed standards.
- Precision BSP tapered threads for enhanced sealing performance.
- Hexagonal body design for simple installation.
- Suitable for various pressure ratings and chemical combinations.
Specifications
| Dimensions (W x H x D) |
46mm x 46mm x 48mm |
| Material |
Polypropylene |
| Colour |
Other |
| Model Number |
90433300 |
| Maximum Working Pressure |
1600 kPa |
The Philmac 1 Inch BSP Thread Pipe Socket - Polypropylene - High Performance is designed for reliable connections in various plumbing applications.
