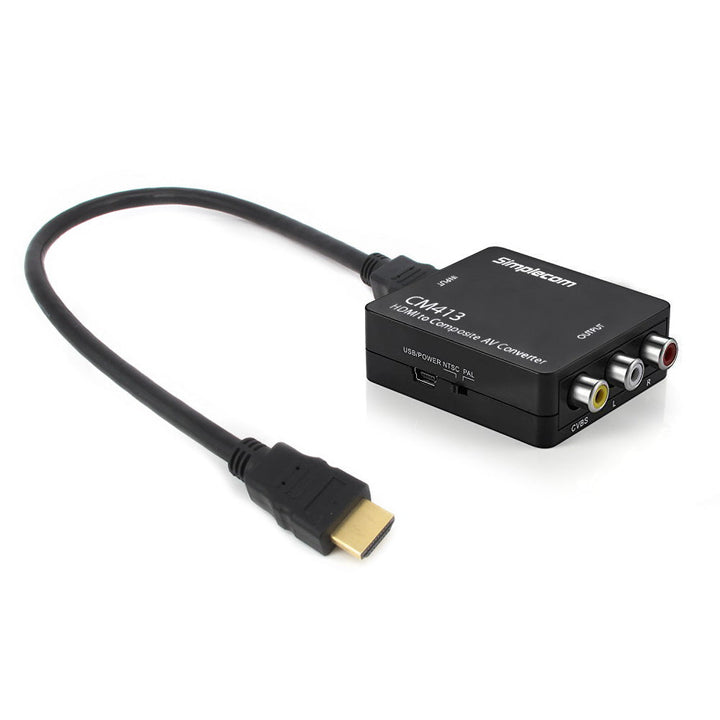

The Simplecom CM413 HDMI to Composite AV Video Adapter converts the high-definition HDMI digital video and audio signal to analog composite video and R/L audio output. It can be used for typical HD video sources, such as laptops, smartphones, Blu-ray players, HD TV boxes, and digital media receivers, etc., to a display with CVBS input, such as traditional CRT TVs, RPTVs, and projectors.
Features
Support HDMI input from up to 1080p (Does Not support 3D)
HDMI Input, Composite Video + Audio R/L Output (Does Not Support reverse way)
Supports NTSC and PAL, two standard TV formats, with a select switch
Hardware conversion, plug and play without any software driver
Signals through the HDMI high-definition video processing downscale to 576i, 480i (PAL/NTSC) video signal output
With advanced video processing chip for better compatibility and image quality
Specifications
Model: CM413
Compatible with HDMI 1.3
Support NTSC and PAL, two standard TV formats
Inputs: HDMI x 1
Outputs: AV x 1; L/R x 1
HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
CVBS output: 480i, 576i
Dimensions: 55 mm (W) x 66 mm (D) x 20 mm (H)
Weight Converter: 40 gram
PAL and NTSC standard format selector switch
Package Contents
1 x CM413 HDMI to AV Converter
1 x USB Cable
1 x HDMI Cable
