Overview
- HID/SPP mode and can switch.
- Supports Bluetooth/2.4G/Wired Mode, 3 modes for options.
- Supports handheld/continuous/auto-induction, 3 modes for options.
- Support over sixteen different countries' keyboard layouts.
- Excellent decoding ability, high speed, and low error rate.
- Built-in 2600mAh battery, super-long standby time.
- Support for smartphones/tablets/computers; compatible with Windows/Android/iOS.
- It can read not only all kinds of 1D barcodes on paper but also barcodes on mobile.
- phone and computer screen, and it also can read 2D barcodes.
- Can be customized according to customer demand.
Technical parameters
|

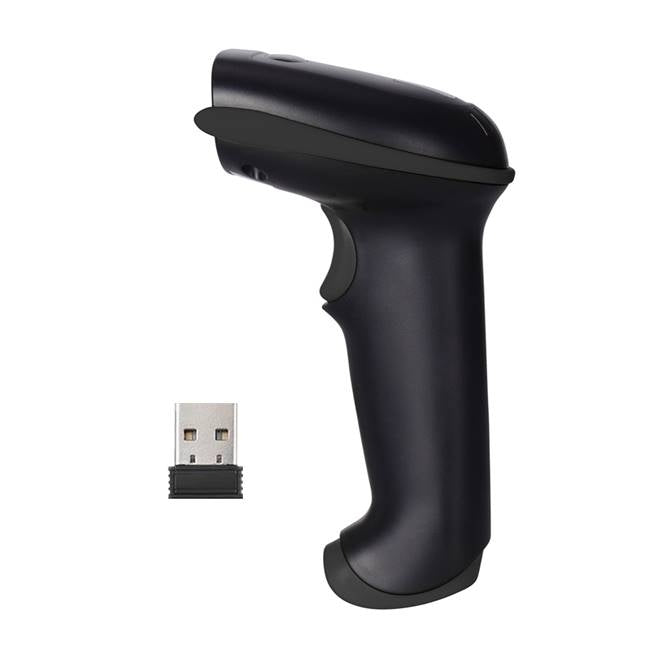

Product Specification: YHD-5700DB 2D Wireless Bluetooth Barcode Scanner |
||
|
Scanner parameters: |
||
|
Transmission mode: Bluetooth/2.4G/Wired |
Storage: 100,000 barcodes |
|
|
Distance: 50m/100m/1.5m |
Sensor: 640 × 480 CMOS |
|
|
CPU: ARM 32-bit Cortex |
Battery: 3.7V-2600mAh |
|
|
Indication: Buzzer & LED |
Light aimer: 617 nm LED |
|
|
Resolution: 4 million |
Anti-interference: 0-100000 Lux Max |
|
|
Decoding speed: scans/sec |
Illumination: 6500K LEDs |
|
|
Printing Contract: ≥25% |
Interface: USB, USB-COM |
|
|
Button life: 8,000,000 times |
Material: ABS+PC |
|
|
Trigger Mode: Handheld, Continuous, Auto-Induction |
||
|
Depth Of Field |
13mil-EAN13 |
50-250mm |
|
4mil-code39 |
60-100mm |
|
|
20mil-QR |
40-300mm |
|
|
10mil-PDF417 |
40-280mm |
|
|
Decode Capability: 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5, CodaBar, MSI Plessey, RSS, etc. 2D: QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc. |
||
|
Scanning angle: Angle of rotation 360°, inclination ± 65°, declination ± 60° |
||
|
Working current: 3.3Vx200mA |
Standby current: 18 uA-5 mA |
|
|
Working time: 7 to 10 days |
Charging power: 5V-400mA |
|
|
Certificate: CE, FCC, RoHS, IP54 |
Drop test: 2 m |
|
